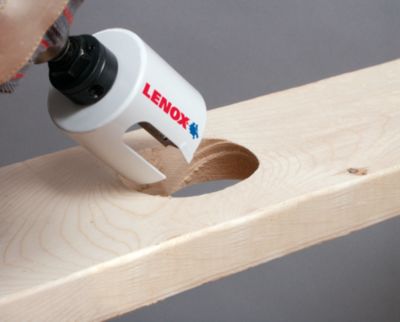

    LENOX ONE TOOTH® ROUGH WOOD HOLE CUTTER

    LENOX ONE TOOTH® ROUGH WOOD HOLE CUTTER

    Drills Faster Than Self-Feed Bits

    LONG LASTING
    High speed steel tooth provides long tool life

    CUTS FAST / LOW TORQUE
    Designed to run at high speeds with very little torque

    DURABLE WOOD CUTTING TOOL
    Cuts wet, frozen, pressure-treated and hard wood without binding

    EASY PLUG REMOVAL
    Patented design allows easy plug removal

    CUTS AT AN ANGLE
    Unique design provides the ability to cut at an angle

    USE STANDARD ARBOR OR SNAP-BACK™ ARBOR
    For optimal performance use with a 3/8" Stubby Spade Bit with arbor

    Specifications

    1 PER PACK CUTTER SIZE CUTTING DEPTH USE ARBOR
    PROD NO IN MM IN MM APPLICATION SNAP-BACKSTANDARD
    2542222HC 1-3/8 34.9 2-7/16" 62 1" pipe & lock installation 2L 2L, 3L
    2543434HC 2-1/8 54.0 2-7/16" 62 1-1/2" pipe & lock installation 2L 2L, 3L
    2543636HC 2-1/4 57.2 2-7/16" 62 1-1/2" pipe & 45°/90° bend couplings 2L 2L, 3L
    2544141HC 2-9/16 65.1 2-7/16" 62 2" pipe 2L 2L, 3L
    2544444HC 2-3/4 69.9 2-7/16" 62 2" pipe & 45°/90° bend couplings 2L 2L, 3L
    2545454HC 3-3/8 85.7 2-7/16" 62 3" duct pipe & bendable duct pipe 2L 2L, 3L
    2545656HC 3-5/8 92.1 2-7/16" 62 3" pipe 2L 2L, 3L
    2546464HC 4 101.6 2-7/16" 62 3" pipe & coupling & dryer vent 2L 2L, 3L
    2546969HC 4-5/16 109.5 2-7/16" 62 4" duct pipe & bendable duct pipe 2L 2L, 3L
    2547474HC 4-5/8 117.5 2-7/16" 62 4" pipe 2L 2L, 3L
    2548080HC 5 127.0 2-7/16" 62 4" pipe & coupling 2L 2L, 3L
    2548787HC 5-1/2 139.7 2-7/16" 62 Toilet flange 2L 2L, 3L
    2550000HC 6-1/4 158.8 2-7/16" 62 6" duct pipe 2L 2L, 3L
    25310SB38 — — — — 3/8" stubby spade bit 2L 2L, 3L
    25312DIAF1 — — — — Diamond file for re-sharpening — —
    LENOX SNAP-BACK™ ARBORS LENOX SNAP-BACK™ ARBORS No tools. No adaptors. No screwing
    around.
    LENOX STANDARD HOLE SAW ARBORS & ACCESSORIES LENOX STANDARD HOLE SAW
    ARBORS & ACCESSORIES     Arbors & Accessories for All Your
    Drilling Needs
    LENOX SNAP-BACK™ QUICK CHANGE EXTENSIONS LENOX SNAP-BACK™
    QUICK CHANGE EXTENSIONS     No tools. No adaptors. No screwing
    around.

    WARRANTY

    LENOX warrants to the original owner that its products are free from defects in material and workmanship for the following periods from the date of the original purchase: Hand Tools are warranted for the anticipated life of the tool; torches and torch accessories are warranted for three years. Please provide proof of date of purchase when making claim. All other products are covered under our manufacturer′s warranty which guarantees the products to be free from defects in material and workmanship for a period of 90 days. This warranty does not apply to product that has been damaged as a result of improper maintenance, accident or other misuse, or which fails to operate due to normal wear and tear. This warranty is void if the product is repaired or modified in any way by anyone other than LENOX. LENOX makes no other warranties, express or implied, concerning the product or the merchantability or fitness thereof for any purpose. In no event shall LENOX be liable for incidental or consequential damages.
