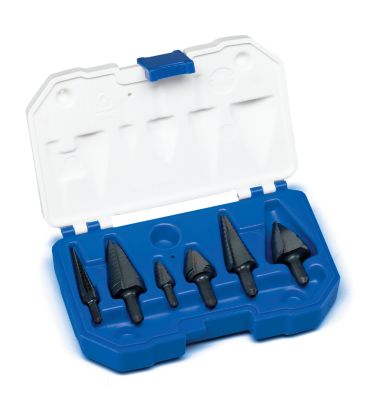

• LENOX VARI-BIT Step Drill Bit Kit, 6 Piece

    LENOX VARI-BIT Step Drill Bit Kit, 6 Piece

    VB1, VB2, VB6, VB7, VB8, VB11 | Prod No. 30927VBKA6

    ACCURATE, BURR-FREE HOLES
    Patented two flute design cuts fast, clean, round holes

    STARTS ON CONTACT
    Split point design for faster penetration and less walking

    LONG TOOL LIFE
    Steam oxide coating adds durability
    Enhanced flute design removes chips rapidly

    6 PIECE VARI-BIT STEP DRILL BIT KIT
    VB1, VB2, VB6, VB7, VB8, VB11

    Specifications

    1 PER PACK HOLE SIZES SHANK SIZE
    PROD NO IN MM # OF HOLE SIZESIN MM
    30881VB1 1/8, 5/32, 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 13/32,
    7/16, 15/32, 1/2    		 3.2, 4.0, 4.8, 5.6, 6.4, 7.1, 7.9, 8.7, 9.5,
    10.3, 11.1, 11.9, 12.7    		 13 1/4 6.4
    30882VB2 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1 12.7, 14.3, 15.9, 17.5, 19.1, 20.6, 22.2, 23.8, 25.4 9 3/8 9.5
    30883VB3 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4 6.4, 7.9, 9.5, 11.1, 12.7, 14.3, 15.9, 17.5, 19.1 9 3/8 9.5
    30884VB4 3/16, 1/4, 5/16, 3/8, 7/16, 1/2 4.8, 6.4, 7.9, 9.5, 11.1, 12.7 6 1/4 6.4
    30886VB6 3/8, 1/2 9.5, 12.7 2 1/4 6.4
    30887VB7 7/8 (for 1/2 conduit) 22.2 (for 12.7 conduit) 1 3/8 9.5
    30908VB8 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16,
    3/4, 13/16, 7/8    		 4.8, 6.4, 7.9, 9.5, 11.1, 12.7, 14.3, 15.9, 17.5,
    19.1, 20.6, 22.2    		 12 3/8 9.5
    30909VB9 7/8, 1-1/8, 1-7/32 22.2, 28.6, 31.0 3 3/8 9.5
    30888VB11 7/8, 1-1/8 (for 1/2 and 3/4 conduit) 22.2, 28.6 (for 12.7 and 19.1 conduit) 2 3/8 9.5
    30912VB12 7/8, 1-1/8, 1-7/32, 1-1/4, 1-3/8 22.2, 28.6, 31.0, 31.8, 34.9 5 3/8 9.5
    30925VBX8 8" (203mm) Extension. Fits 3/8 (9.5mm) shank & larger. 1 per pack. 3/8 9.5
