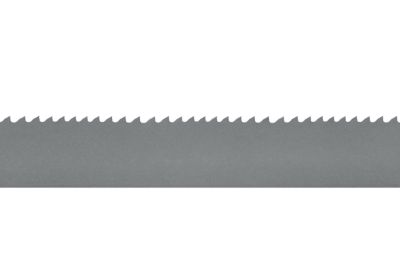

    LENOX HRX™ BI-METAL BAND SAW BLADES

    LENOX HRX™ BI-METAL BAND SAW BLADES

    Optimized to Cut Large Beams and Heavy Walled Tubes

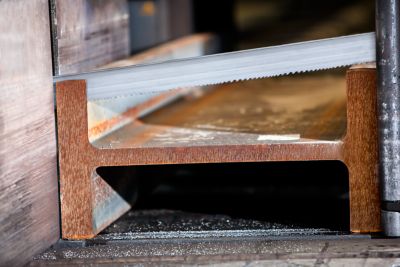

    LONG BLADE LIFE WHEN CUTTING LARGE STRUCTURAL BEAMS
    Patent pending and designed to resist stripping teeth
    POWER BLAST TECHNOLOGY® strengthens the blade to minimize breaks

    STRAIGHT CUTS THROUGH WIDE CROSS SECTIONS
    Designed to improve chip flow and reduce blade deflection for cutting efficiency
    Tooth geometry designed to minimize edge chipping and crooked cuts

    WIDE KERF LIMITS PINCHING IN LARGER BEAMS
    Alternating set teeth widen the cutting channel to limit blade pinching

    View the LENOX HRX™ BI-METAL BAND SAW BLADE PDF

    Specifications

    WIDTH x THICKNESS TPI
    IN MM 1.4/2.0 2/3 3/4 4/6 5/7
    1-1/4 x .042 34 x 1.07
    1-1/2 x .050 41 x 1.27
    2 x .063 54 x 1.60
    5-5/8 x .063 67 x 1.60
    = Extra heavy set available
    • Carbon Steels
    • Structural Steels
