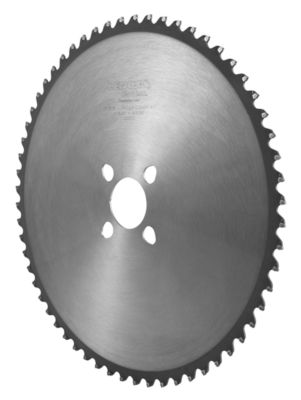

    LENOX CIRCTECH ™ PRECISION CM

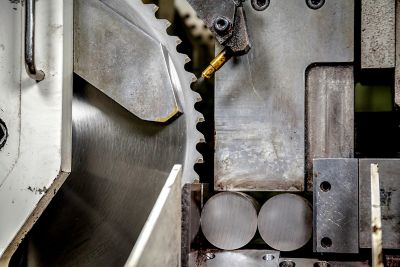

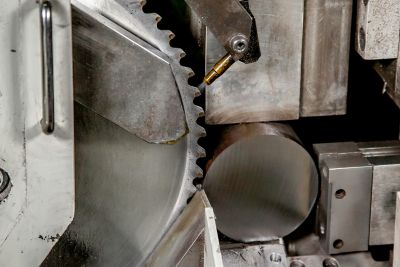

    Optimum Performance When Cutting Carbon Steels and Mild Alloys

    SPECIAL GRADE CERMET TIPS EXTEND BLADE LIFE
    Exceptional heat and wear resistance when cutting solid, carbon based metals
    Breakthrough manufacturing techniques produce crisp tooth edges and balanced grind angles

    OPTIMIZED CHIP BREAKER ENABLES FASTER CUTTING
    Advanced design efficiently breaks and removes chips

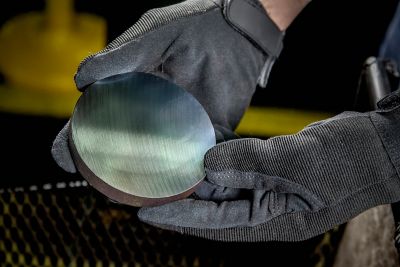

    SUPERIOR PLATE FLATNESS DELIVERS EXCEPTIONAL PART FINISH
    Plates are laser cut and expertly flattened
    Advanced tensioning system maintains plate flatness and keeps tight tolerances

    View the LENOX CIRCTECH PRECISION CM PDF

    Specifications

    ITEM #  DIAMETER  KERF  PLATE  BORE  PINHOLE CONFIGURATION  TEETH  MACHINE REFERENCE
    1872954 250 2.0 1.70 32 4/11/63 + 4/9/50  60 Nishijimax, Tsune, Kentai,
    Rhobi, Kasto (Wagner),
    Marvel/Spartan,
    Exact-Cut, Everising
    1872955 250 2.0 1.70 32 4/11/63 + 4/9/50  72
    1872956 250 2.0 1.70 32 4/11/63 + 4/9/50  80
    1872957 250 2.0 1.70 32 4/11/63 + 4/9/50  100
    1872958 250 2.0 1.70 40 2/12/65 + 2/15/80  60 Behringer
    1872959 250 2.0 1.70 40 2/12/65 + 2/15/80  80
    1873053 285 2.0 1.70 32 4/9/50 + 4/11/63  60 Nishijimax, Tsune, Kasto
    (Wagner), Everising
    1873054 285 2.0 1.70 32 4/9/50 + 4/11/63  72
    1873055 285 2.0 1.70 32 4/9/50 + 4/11/63  80
    1873056 285 2.0 1.70 32  4/9/50 + 4/11/63  100
    1873057 285 2.0 1.70 40 2/12/65 + 4/15/80+4/12/64  60 Behringer, Noritake,
    Amada, Daito Delta
    1873058 285 2.0 1.70 40 2/12/65 + 4/15/80+4/12/64  72
    1873059 285 2.0 1.70 40 2/12/65 + 4/15/80+4/12/64  80
    1873060 285 2.0 1.70 40 2/12/65 + 4/15/80+4/12/64  100
    1873121 315 2.3 2.00 32 4/9/50 60 Kasto (Wagner)
    1873122 315 2.3 2.00 32 4/9/50 80
    1873123 315 2.3 2.00 40 2/12/65 + 4/15/80+4/12/64  60 Behringer
    1873124 315 2.3 2.00 40 2/12/65 + 4/15/80+4/12/64  80
    1873085 360 2.6 2.25 40 4/11/90 + 2/12/65 + 2/15/80  60 Amada, Behringer, Mega,
    Missler, Everising, Daito
    Delta, Marvel/ Spartan
    1873086 360 2.6 2.25 40 4/11/90 + 2/12/65 + 2/15/80  80
    1873087 360 2.6 2.25 40 4/11/90 + 2/12/65 + 2/15/80  100
    1873135 360 2.6 2.25 50 4/16/80 + 4/11/90  60 Nishijimax, Tsune, Kasto (Wagner)
    1873149 360 2.6 2.25 50 4/16/80 + 4/11/90 80
    1873150 360 2.6 2.25 50 4/16/80 + 4/11/90 100
    1873151 420 2.6 2.25 40 2/12/65 + 2/15/80 60 Behringer
    1873152 420 2.6 2.25 40 2/12/65 + 2/15/80 80
    1873153 420 2.6 2.25 50 4/16/80 60 Tsune
    1873154 420 2.6 2.25 50 4/16/80 80
    1873155 460 2.7 2.25 40 4/11/90 + 2/12/65 + 2/15/80 40 Behringer
    1873156 460 2.7 2.25 40 4/11/90 + 2/12/65 + 2/15/80 60
    1873157 460 2.7 2.25 40 4/11/90 + 2/12/65 + 2/15/80 80
    1873158 460 2.7 2.25 50 4/16/80 + 4/21/90 40 Nishijimax,Amada,
    Mega, Marvel/Spartan,
    Noritake, Everising,
    Kasto (Wagner), Hydromat
    1873159 460 2.7 2.25 50 4/16/80 + 4/21/90 60
    1873160 460 2.7 2.25 50 4/16/80 + 4/21/90 80
    1873161 460 2.7 2.25 50  4/16/80 + 4/21/90 100
    1873162 560 3.0 2.50 50 4/22/120 40 Nishijimax
    1873163 560 3.0 2.50 50 4/22/120 60
    1873164 560 3.0 2.50 50 4/22/120 80
    1873165 580 3.2 2.70 80 4/22/120 60 Tsune
    1873166 580 3.2 2.70 80 4/22/120 80
    • Carbon Steels
    • Alloy Steels
