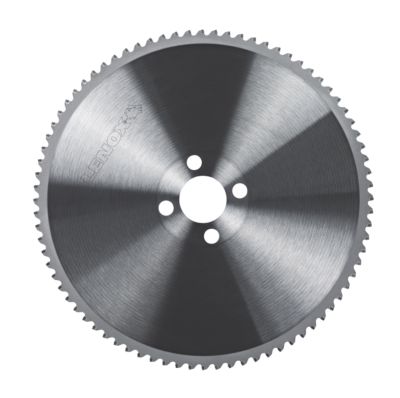

    LENOX CIRCTECH ™ PRECISION CM200
    Play Video

    LENOX CIRCTECH ™ PRECISION CM200

    Optimum Performance When Cutting Tough Alloys and Tool Steels

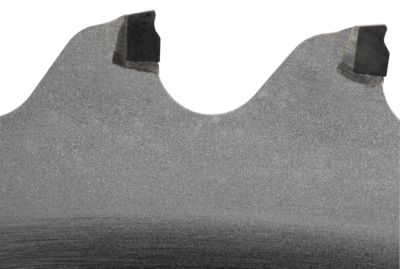

    SPECIAL GRADE CERMET TIPS EXTEND BLADE LIFE
    Exceptional heat and wear resistance when cutting solid tool steels and tough alloy steels

    New tooth geometry optimizes cutting efficiency and toughness to resist chipping in harder to cut alloys
    Lower clearance angle creates a tougher edge
    Improved chipbreaker eliminates weak points in high stress areas
    Enhanced edge preparation reduces tip fractures and extends blade life

    SUPERIOR PLATE FLATNESS DELIVERS EXCEPTIONAL PART FINISH
    Plates are laser cut and expertly flattened
    Advanced tensioning system maintains plate flatness and keeps tight tolerances

    View the LENOX CIRCTECH PRECISION CM200 PDF

    Specifications

    ITEM #  DIAMETER  KERF  PLATE  BORE  PINHOLE CONFIGURATION  TEETH  MACHINE REFERENCE
    1938746 250 2.0 1.70 32 4/11/63 + 4/9/50  60 Nishijimax, Tsune, Kentai,
    Rhobi, Kasto (Wagner),
    Marvel/Spartan,
    Exact-Cut, Everising
    1938749 250 2.0 1.70 32 4/11/63 + 4/9/50  72
    1938509 250 2.0 1.70 32 4/11/63 + 4/9/50  80
    1938510 250 2.0 1.70 32 4/11/63 + 4/9/50  100
    1938831 250 2.0 1.70 40 2/12/65 + 2/15/80  60 Behringer
    1938836 250 2.0 1.70 40 2/12/65 + 2/15/80  80
    1938837 285 2.0 1.70 32 4/9/50 + 4/11/63  60 Nishijimax, Tsune, Kasto
    (Wagner), Everising
    1938838 285 2.0 1.70 32 4/9/50 + 4/11/63  72
    1938473 285 2.0 1.70 32 4/9/50 + 4/11/63  80
    1938474 285 2.0 1.70 32  4/9/50 + 4/11/63  100
    1938475 285 2.0 1.70 40 2/12/65 + 4/15/80+4/12/64  60 Behringer, Noritake,
    Amada, Daito Delta
    1938476 285 2.0 1.70 40 2/12/65 + 4/15/80+4/12/64  72
    1938477 285 2.0 1.70 40 2/12/65 + 4/15/80+4/12/64  80
    1938478 285 2.0 1.70 40 2/12/65 + 4/15/80+4/12/64  100
    1938841 315 2.3 2.00 32 4/9/50 60 Kasto (Wagner)
    1938842 315 2.3 2.00 32 4/9/50 80
    1938815 315 2.3 2.00 40 2/12/65 + 4/15/80+4/12/64  60 Behringer
    1938817 315 2.3 2.00 40 2/12/65 + 4/15/80+4/12/64  80
    1938819 360 2.6 2.25 40 4/11/90 + 2/12/65 + 2/15/80  60 Amada, Behringer, Mega,
    Missler, Everising, Daito
    Delta, Marvel/ Spartan
    1938947 360 2.6 2.25 40 4/11/90 + 2/12/65 + 2/15/80  80
    1938948 360 2.6 2.25 40 4/11/90 + 2/12/65 + 2/15/80  100
    1938949 360 2.6 2.25 50 4/16/80 + 4/11/90  60 Nishijimax, Tsune, Kasto (Wagner)
    1938853 360 2.6 2.25 50 4/16/80 + 4/11/90 80
    1938854 360 2.6 2.25 50 4/16/80 + 4/11/90 100
    1938855 420 2.6 2.25 40 2/12/65 + 2/15/80 60 Behringer
    1938856 420 2.6 2.25 40 2/12/65 + 2/15/80 80
    1938857 420 2.6 2.25 50 4/16/80 60 Tsune
    1938858 420 2.6 2.25 50 4/16/80 80
    1938859 460 2.7 2.25 40 4/11/90 + 2/12/65 + 2/15/80 40 Behringer
    1939022 460 2.7 2.25 40 4/11/90 + 2/12/65 + 2/15/80 60
    1939023 460 2.7 2.25 40 4/11/90 + 2/12/65 + 2/15/80 80
    1939024 460 2.7 2.25 50 4/16/80 + 4/21/90 40 Nishijimax,Amada,
    Mega, Marvel/Spartan,
    Noritake, Everising,
    Kasto (Wagner), Hydromat
    1939025 460 2.7 2.25 50 4/16/80 + 4/21/90 60
    1938994 460 2.7 2.25 50 4/16/80 + 4/21/90 80
    1938995 460 2.7 2.25 50  4/16/80 + 4/21/90 100
    1938996 560 3.0 2.50 50 4/22/120 40 Nishijimax
    1938997 560 3.0 2.50 50 4/22/120 60
    1938998 560 3.0 2.50 50 4/22/120 80
    1938999 580 3.2 2.70 80 4/22/120 60 Tsune
    1939000 580 3.2 2.70 80 4/22/120 80
    • Tough Alloy Steels
    • Tool Steels
