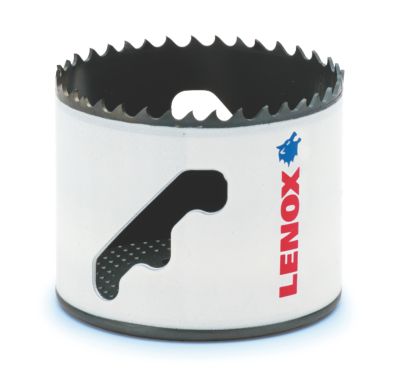

    BI-METAL SPEED SLOT® HOLE SAW WITH T3 TECHNOLOGY™

    BI-METAL SPEED SLOT® HOLE SAW WITH T3 TECHNOLOGY™

    50% LONGER LIFE. 2X MORE DURABLE.*

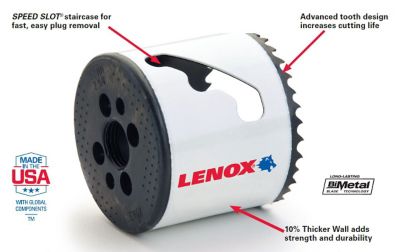

    IMPROVED METAL CUTTING PERFORMANCE
    Increased wall thickness improves durability and minimizes tooth loss
    Optimized tooth design penetrates metal with ease

    FAST, EFFICIENT CUTTING IN WOOD
    Larger, sharper teeth remove more wood for fast cutting

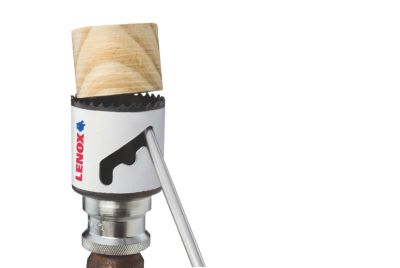

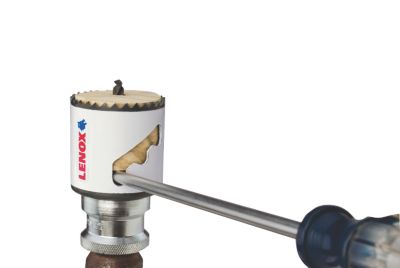

    EASY PLUG REMOVAL
    SPEED SLOT staircase design for fast, easy plug ejection

    *vs. Prior LENOX Generation

    View the LENOX Bi-Metal Speed Slot Hole Saw PDF

    Specifications

    DIAMETER1 PER BOX 1 PER BLISTER SEAL ARBORED
    1-PACK
    PIPE TAP PIPE ENTRANCE USE ARBOR
    INMMPROD NO PROD NO PROD NO IN MM IN MM SNAP-BACKSTANDARD
    9/16 14.3 300099L 1787781 1772423 5L 1L, 4L or 5L
    5/8 15.9 3001010L 1771823 1772424 5L 1L, 4L or 5L
    11/16 17.5 3001111L 1787773 1772425 5L 1L, 4L or 5L
    3/4 19.1 3001212L 1771952 1772426 1/2 12.7 3/8 9.5 5L 1L, 4L or 5L
    25/32 19.8 3009820MMHS 1771962 1772427 5L 1L, 4L or 5L
    13/16 20.6 3001313L 1787775 1772428 5L 1L, 4L or 5L
    7/8 22.2 3001414L 1771953 1772429 3/4 19.1 1/2 12.7 5L 1L, 4L or 5L
    15/16 23.8 3001515L 1787776 1772430 5L 1L, 4L or 5L
    1 25.4 3001616L 1771954 1772481 5L 1L, 4L or 5L
    1-1/16 27.0 3001717L 1771955 1772482 5L 1L, 4L or 5L
    1-1/8 28.6 3001818L 1771959 1772483 1 25.4 3/4 19.1 5L 1L, 4L or 5L
    1-3/16 30.2 3001919L 1787777 1772474 5L 1L, 4L or 5L
    1-1/4 31.8 3002020L 1771960 1772491 2L, 6L 2L, 3L or 6L
    1-5/16 33.3 3002121L 1787778 1772492 2L, 6L 2L, 3L or 6L
    1-3/8 34.9 3002222L 1771961 1772727 1 25.4 2L, 6L 2L, 3L or 6L
    1-7/16 36.5 3002323L 1787779 1772728 2L, 6L 2L, 3L or 6L
    1-1/2 38.1 3002424L 1771963 1772729 1-1/4 31.8 2L, 6L 2L, 3L, 6L or 7L
    1-9/16 39.7 3002525L 1787780 1772730 2L, 6L 2L, 3L, 6L or 7L
    1-5/8 41.3 3002626L 1771964 1772931 2L, 6L 2L, 3L, 6L or 7L
    1-11/16 42.9 3002727L 1787800 1772932 2L, 6L 2L, 3L, 6L or 7L
    1-3/4 44.5 3002828L 1771967 1772933 1-1/2 38.1 1-1/4 31.8 2L, 6L 2L, 3L, 6L or 7L
    1-13/16 46.0 3002929L 1787841 1772935 2L, 6L 2L, 3L, 6L or 7L
    1-7/8 47.6 3003030L 1771968 1772778 2L, 6L 2L, 3L, 6L or 7L
    2 50.8 3003232L 1771970 1772779 1-1/2 38.1 2L, 6L 2L, 3L, 6L or 7L
    2-1/16 52.4 3003333L 1787842 1772780 2L, 6L 2L, 3L, 6L or 7L
    2-1/8 54.0 3003434L 1772003 1772951 2L, 6L 2L, 3L, 6L or 7L
    2-1/4 57.2 3003636L 1771983 1772952 2 50.8 2L, 6L 2L, 3L, 6L or 7L
    2-3/8 60.3 3003838L 1771984 1772953 2L, 6L 2L, 3L, 6L or 7L
    2-1/2 63.5 3004040L 1771987 1772954 2 50.8 2L, 6L 2L, 3L, 6L or 7L
    2-9/16 65.1 3004141L 1787843 1772955 2L, 6L 2L, 3L, 6L or 7L
    2-5/8 66.7 3004242L 1771988 1772956 2-1/2 63.5 2L, 6L 2L, 3L, 6L or 7L
    2-11/16 68.3 3004343L 1771989 2L, 6L 2L, 3L, 6L or 7L
    2-3/4 69.9 3004444L 1771990 1772961 2L, 6L 2L, 3L, 6L or 7L
    2-7/8 73.0 3004646L 1787844 1772962 2L, 6L 2L, 3L, 6L or 7L
    3 76.2 3004848L 1772021 1772963 2-1/2 63.5 2L, 6L 2L, 3L, 6L or 7L
    3-1/8 79.4 3005050L 1772022 1772964 2L, 6L 2L, 3L, 6L or 7L
    3-1/4 82.6 3005252L 1772023 1772966 3 76.2 2L, 6L 2L, 3L, 6L or 7L
    3-3/8 85.7 3005454L 1787845 1772945 2L, 6L 2L, 3L, 6L or 7L
    3-1/2 88.9 3005656L 1772012 1772946 2L, 6L 2L, 3L, 6L or 7L
    3-5/8 92.1 3005858L 1772013 1772949 3 76.2 2L, 6L 2L, 3L, 6L or 7L
    3-3/4 95.3 3006060L 1787846 1772950 3-1/2 85.7 2L, 6L 2L, 3L, 6L or 7L
    3-7/8 98.4 3006262L 1787847 1773001 2L, 6L 2L, 3L, 6L or 7L
    4 101.6 3006464L 1772014 1773002 2L, 6L 2L, 3L, 6L or 7L
    4-1/8 104.8 3006666L 1772018 1773003 3-1/2 85.7 2L, 6L 2L, 3L, 6L or 7L
    4-1/4 108.0 3006868L 1772019 1773004 4 95.3 2L, 6L 2L, 3L, 6L or 7L
    4-3/8 111.1 3007070L 1787848 1773005 2L, 6L 2L, 3L, 6L or 7L
    4-1/2 114.3 3007272L 1772075 1773006 2L, 6L 2L, 3L, 6L or 7L
    4-5/8 117.5 3007474L 1787850 4 95.3 2L, 6L 2L, 3L, 6L or 7L
    4-3/4 120.7 3007676L 1772076 1773008 4-1/2 108.0 2L, 6L 2L, 3L, 6L or 7L
    5 127.0 3008080L 1772077 2L, 6L 2L, 3L, 6L or 7L
    5-1/2 139.7 3008888L 1787785 2L, 6L 2L, 3L, 6L or 7L
    6 152.4 3009696L 1772121 2L, 6L 2L, 3L, 6L or 7L
