    LENOX METALMAX ™

    LENOX METALMAX

    New alternative to abrasive cut-off wheels.

    1,000+ cuts:
    MetalMax delivers 1,000 or more cuts with no need for wheel changes. That is 30 times longer life than thin bonded cut-off wheels.*

    Long Life:
    Advanced diamond technology provides extreme durability in metal cutting applications, leading to increased productivity, reduced downtime, and a lower cost per cut compared to thin bonded cut-off wheels.

    Diameter retention:because LENOX MetalMax is made with diamonds, it doesn't get smaller. The cutting depth stays the same throughout its life, meaning better control, reach and precision.

    Less dust residue:
    with LENOX MetalMax there is less odor and dust residue as the wheel does not wear down like bonded abrasives. Sparks originate only from the material being cut.

    One wheel, multiple materials:One wheel, multiple materials: MetalMax is recommended for multiple types of metal including steel, sheet metal, stainless steel, rebar, cast iron, aluminum**and non-ferrous metals.

    LENOX MetalMax is designed for use in the same power tools as bonded abrasive wheels, at the same RPMs and feed forces. No changes in operating settings are required. Use LENOX MetalMax as you would a bonded abrasive wheel.

    *Average performance for 4.5” inch wheel in 1” carbon steel square tube vs thin bonded abrasive cut-off wheels.
    **When cutting aluminum, it is recommended to apply cutting wax or other type of saw lubricant to avoid chip welding.

    Specifications

    PRODUCT NUMBER PRODUCT DIMENSIONS POWER TOOL TYPE RPM Max
    DIAMETER THICKNESS ARBOR OPTIONAL ARBOR ADJUSTMENT
    1972914 1.5" .050" 3/8" 1/4" Die Grinder 40200
    1972917 2" .050" 3/8" 1/4" Die Grinder 30500
    1972918 3" .050" 3/8" 1/4" Die Grinder 20300
    1972919 4" .050" 3/8" 1/4" Die Grinder 15200
    1972920 4" .050" 5/8" Angle Grinder 15200
    1972921 4.5" .050" 7/8" Angle Grinder 13300
    1972922 5" .050" 7/8" Angle Grinder 12200
    1972923 6" .050" 7/8" Diamond Knock Out Angle Grinder/Circular Saw 10100
    1972924 7" .060" 7/8" Diamond Knock Out Angle Grinder/Circular Saw 8400
    1972925 8" .060" 5/8" Diamond Knock Out Circular Saw 7600
    1972926 10" .100" 5/8" Stationary/Small Chop Saw 5900

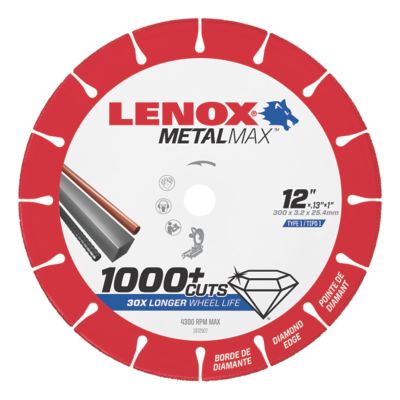

    1972927 12" .130" 1" Chop Saw 5000
    1972929 14" 130" 1" Chop Saw 4300
    1972930 12" 150' 1" 20mm Gas Saw 6200
    1972932 14" 150" 1" 20mm Gas Saw 5300
